LED Light Source

LS1000+CWC provides innovative zero
Maintenance lighting safety solutions.

Our LS1000+CWC:

COLORS:

 Yellow - RGB

IIRPM CONFIGURATIONS:
- Bi-Directional
- Flash Patterns :: Multiple Configuration

APPLICATIONS:

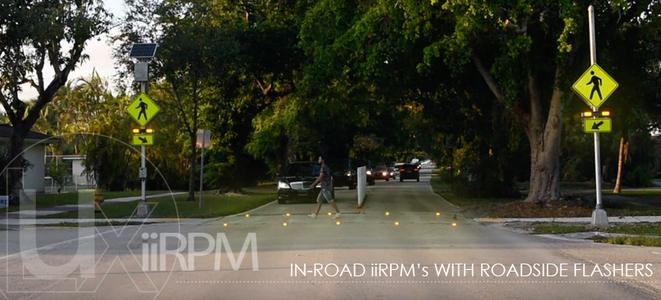

- In-Roadway PED Activated Crosswalks
- School Zones
- Incident management


​ATTRIBUTES:
- IP68 Certified
- NEMA TS2 Certified
- MUTCD Compliant
- FDOT Approved ( iiRPM )
- FCC Approved
- Dark Sky Friendly
- Fish and Wildlife Approved
- Bicycle Friendly
- ADA Compliant ( Less than 1/4 inch )
- One Mile Visibility
- Zero Maintenance
- 2 Year Warranty
- Highly Durable Housing ( 120K Lbs )
- Snow Plowable


Lighting Properties

 Model                         Colors                            Typical Light Brightness                       (mcd)


LS1000+CWSYS        Yellow                             Day / Night                                          225,000

MAIN PCB uses Ultra Low Power Microprocessor control to provide a
steady flash rate over the temperature range.

Aluminum Die Cast Housing         Aluminum A383 Die Cast with Polycarbonate Lenses & Composite Cup

Specifications for Model  :  LS1000+CWC

Electronic Controller

Dimensions and Weight

Size:  ø 6.29” x  3”  (ø160 x 76.2mm)
Weight:  3.6 lbs  (1,634g)

Physical Properties :: LS1000+CWSYS


Environmental .                                                      NEMA TS2
Operating Temperature                                            -40°c to +74°c
Operating Cycles                                                     Continuous
FCC .                                                                       Title 47-B-15

Physical Properties :: LS1000+CWC


Compressive Strength                                            120,000 lbs  (535,000 N)
Water Proof                                                             IP68
Operating Temperature                                            -40°c to +74°c
Operating Cycles                                                     Continuous
FCC .                                                                       Title 47-B-15

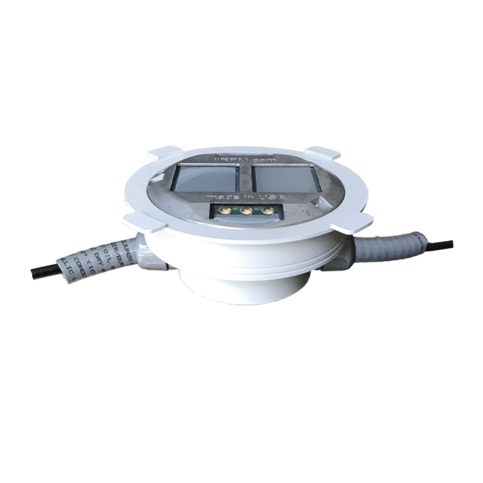

INTERNALLY ILLUMINATED RAISED PAVEMENT MARKER

LED Size                                                         3.2mm  x  2.7mm
LED Brightness                                               225 Candela
LED Quantities                                                3PCS/6PCS

Basic Components

LS1000+CWSYS  CUT SHEET DOWNLOAD

LS1000+ iiRPM SOLAR ROAD MARKERS

LED

                             Type: One Flash  (1/sec)  Bi-Directional

Power                                      AC / DC                                                          2 Watts

IIRPM

Yellow                                                               595  nm

OFFICIAL INSTALLER & DISTRIBUTOR OF LED ROAD MARKERS . . . . . . . . . . . . . .

FLUSH MOUNT
